SMART AGRICULTURAL MONITORING PROJECT
FM02 - remote electric fence monitoring
FM02 is an integrated electric-fence monitoring system designed and developed by TavoTech. The project covered electronics, mechanical design, embedded systems, server-side systems, and iPhone / Android application design and programming.
Up to 15 kVvoltage monitoring
NB-IoT · LTE-Mconnectivity via nano SIM
iPhone · Androidapp and alerts
PROJECT SUMMARY
From a technical challenge to a working system
This case study demonstrates how TavoTech developed the complete FM02 system - from technical requirements and electronics to connectivity, servers and mobile applications.
Challenge
A failed energiser, incorrect connection, detached clip or damaged fence can remain unnoticed until the next physical inspection.
TavoTech solution
TavoTech designed and programmed the complete system: electronics, mechanics, embedded software, the server solution, and the iPhone and Android applications.
Outcome
The outcome is a complete, integrated system that measures voltage up to 15 kV, transfers data over a cellular connection and presents it on a phone.
TAVOTECH RESPONSIBILITY
The complete product-development chain under one roof
For the FM02 project, TavoTech carried out the electronics, mechanical, embedded-system, server-side and mobile-application design, engineering and programming work.

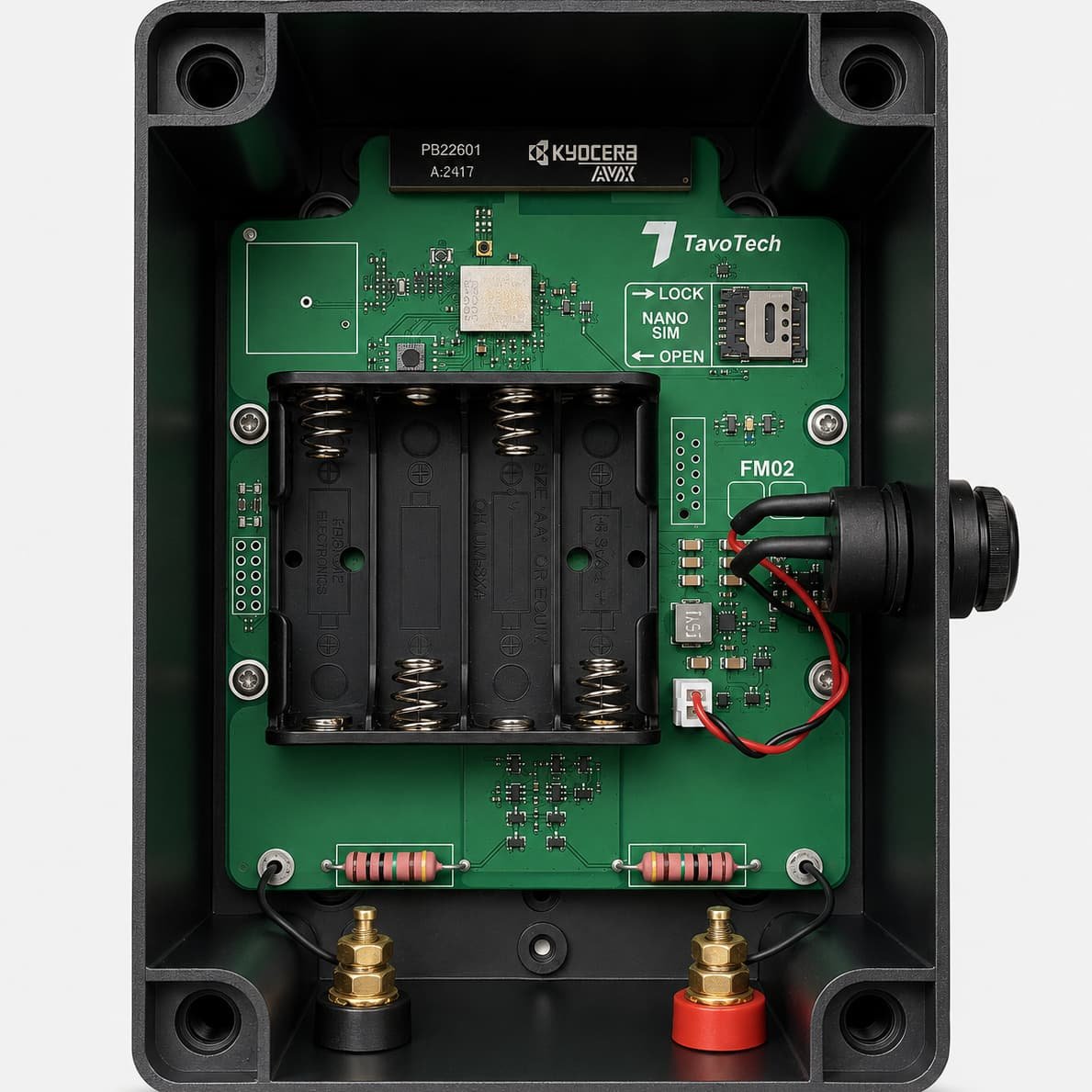

Electronics and mechanics
Circuit design, PCB development, high-voltage measurement circuitry, enclosure integration, mounting and connections.
Embedded systems and connectivity
Measurement logic, power management, diagnostics, NB-IoT / LTE-M data transfer and alert initiation.
Servers and mobile applications
Server-side architecture, data processing, alert logic, and the design and programming of the iPhone and Android applications.
REMOTE MONITORING
Fewer daily inspections and faster response

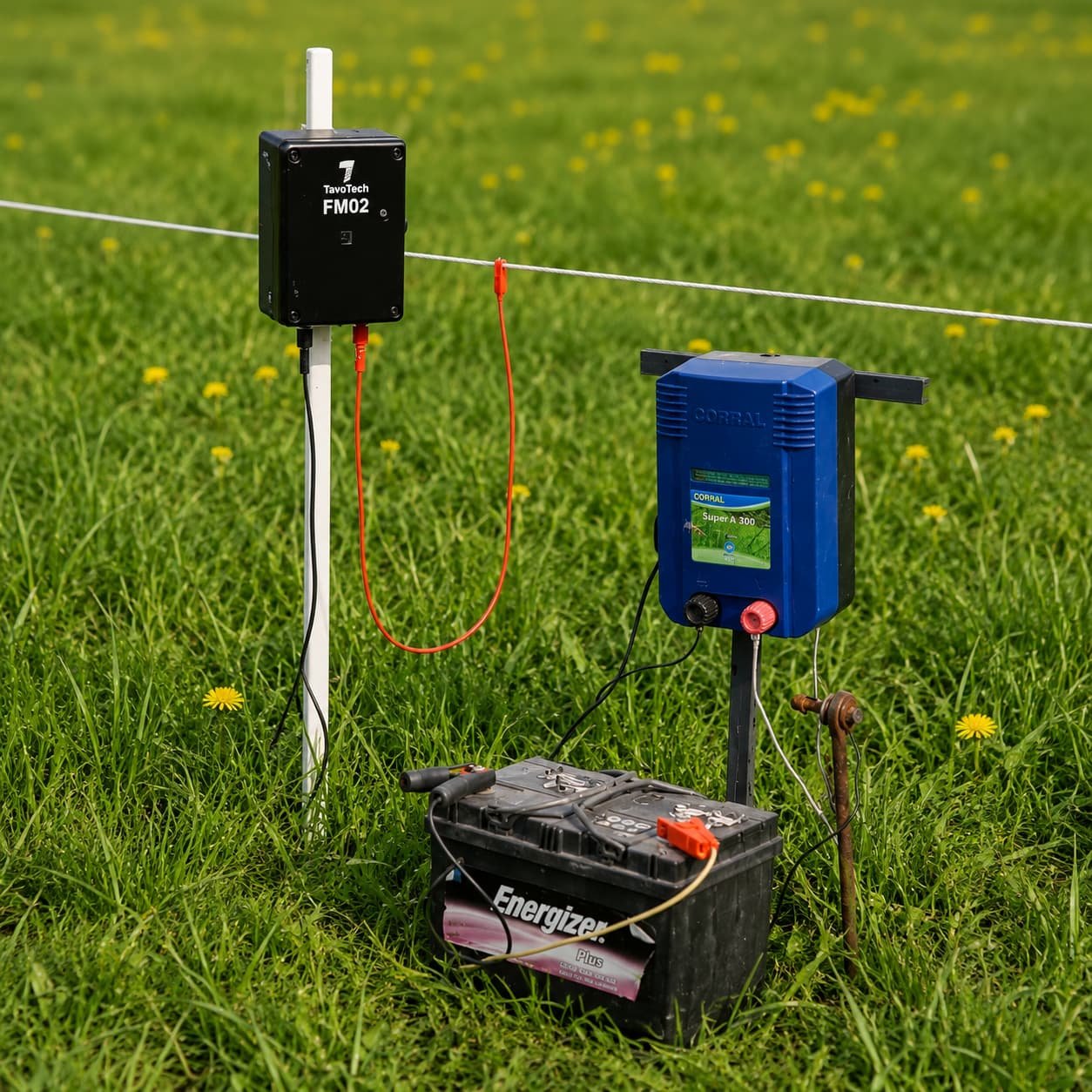

The device helps reveal when the energiser has switched off, failed, been connected incorrectly or when the fence has been damaged.
- Voltage-drop alerts are delivered directly to the phone.

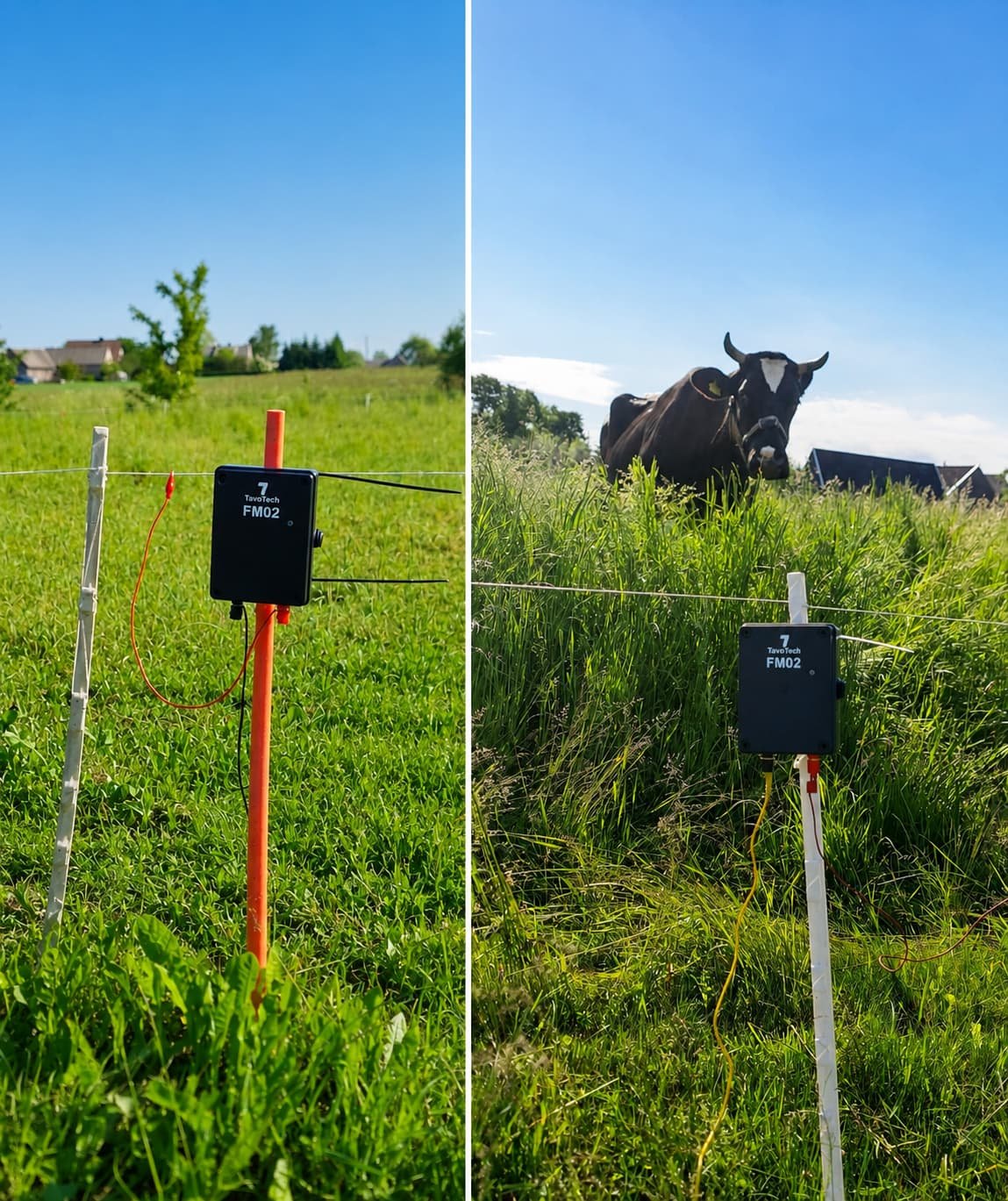

- Suitable for remote pastures and farms.

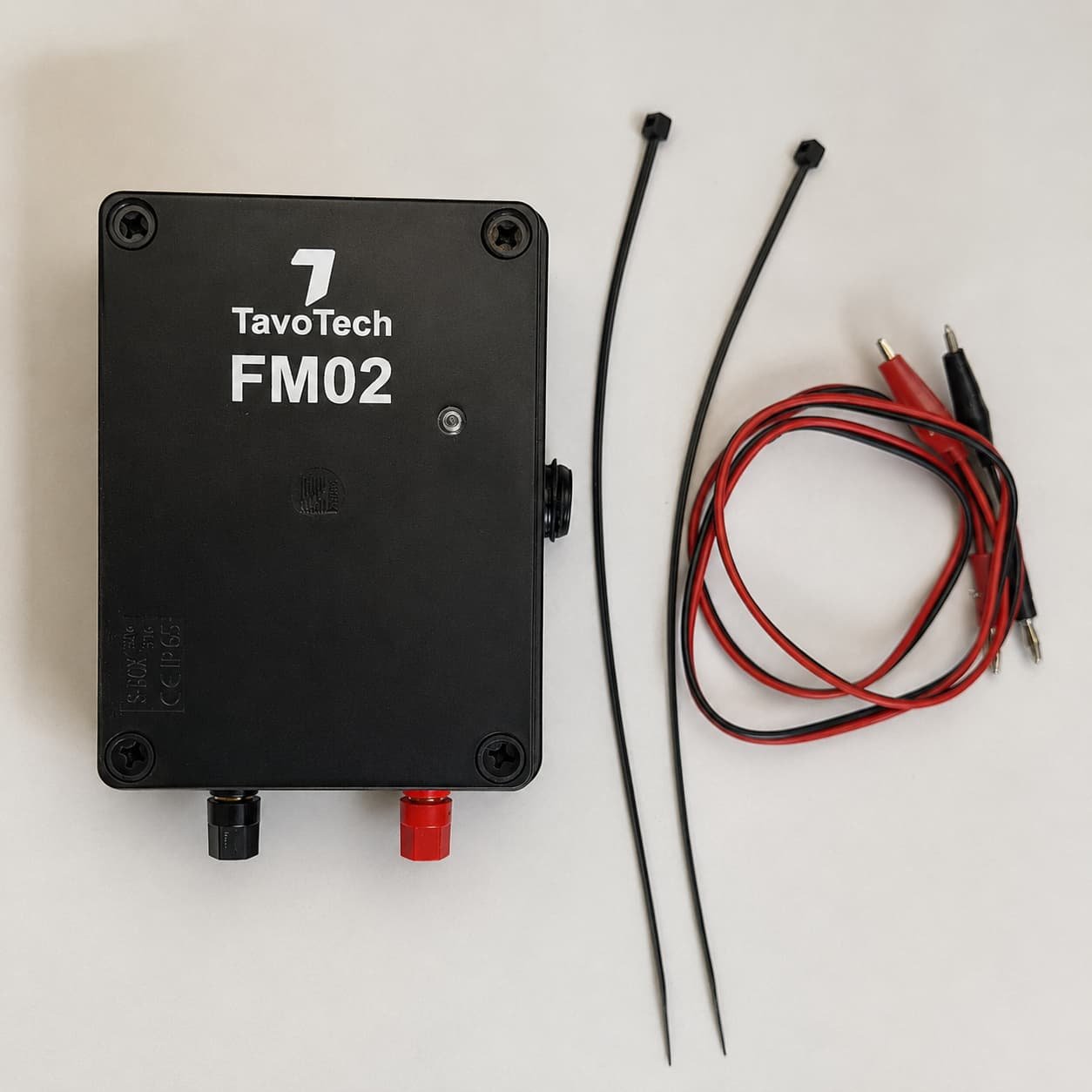

- Quick installation with two mounting straps and connection leads.
- Helps reduce the risk of escaped livestock and other losses.

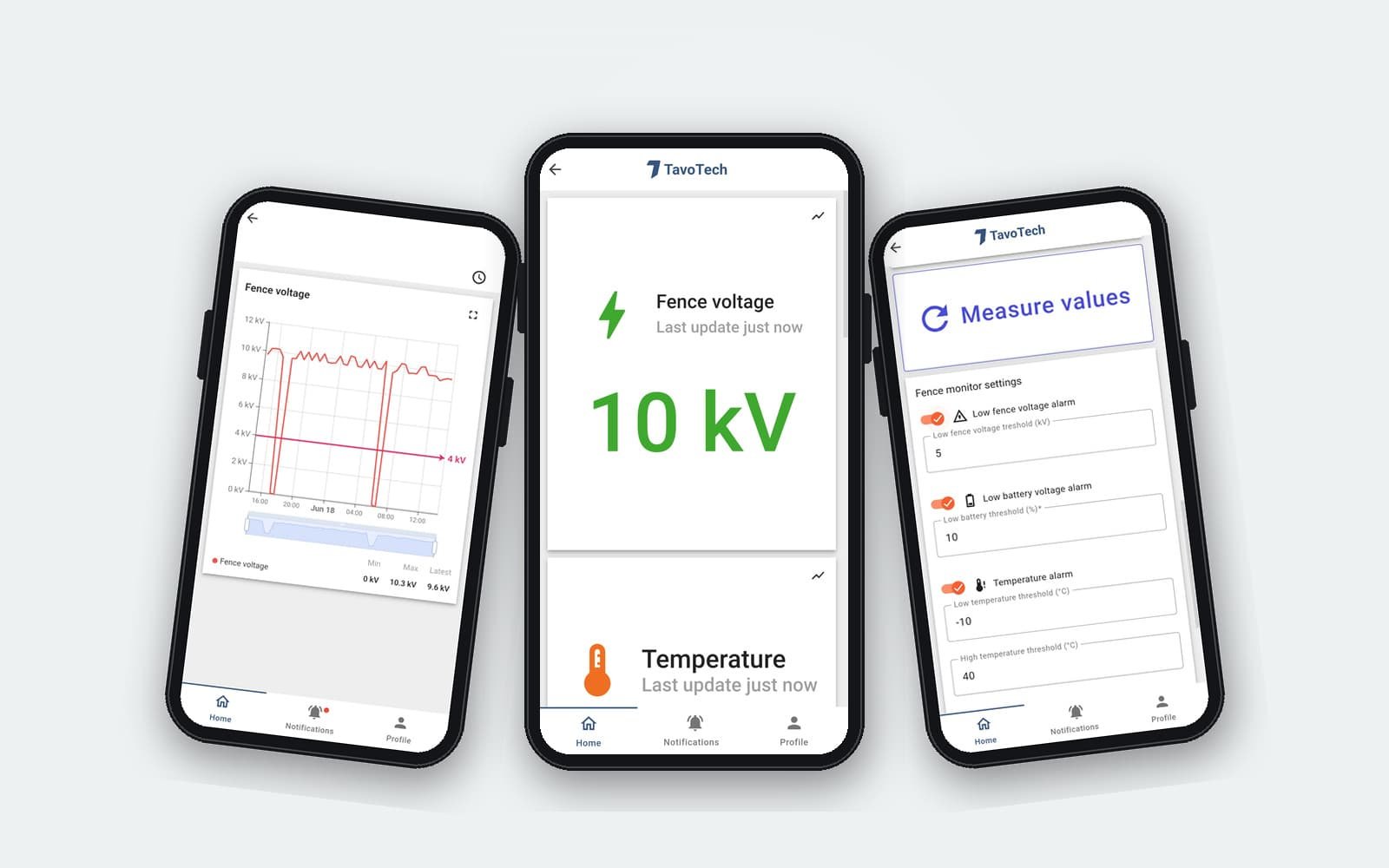

MOBILE APPLICATION
Data and alerts in one place
The TavoTech app works with iPhone and Android phones. It provides current readings, up to seven days of history and configurable alerts.
- View electric-fence voltage and historical data.
- Configurable voltage, battery-level and temperature alert thresholds.
- Notifications for faults, shutdown or device inactivity.
- Convenient remote control from a phone.
TECHNICAL IMPLEMENTATION
Electronics, connectivity and power management
FM02 combines high-voltage measurement, battery power, internal-temperature monitoring and low-power cellular connectivity.
- Voltage measurement up to 15 kV.
- Measurement interval - 30 s.
- Data-transfer interval - 30 min.
- An alarm is sent immediately after measurement.
- Battery-level and internal-temperature monitoring.
- Powered by four AA batteries; operating time up to six months.
- Nano SIM card; NB-IoT or LTE-M coverage is required.
INTENDED USERS
A practical solution for farms and pastures
FM02 is designed for farmers, livestock owners, pasture managers and anyone who needs to monitor electric-fence status remotely and receive important alerts in time.
FINAL IMPLEMENTATION
From prototype to a user-ready system
The project was completed as a working FM02 device with its mounting and connection elements, server solution, and iPhone and Android applications.
A SIMILAR MONITORING CHALLENGE?
Let’s discuss your remote-monitoring project
TavoTech can combine electronics, firmware, connectivity and an application into one working solution.
